Robertshaw Model 566 Vibration Monitor and Switch

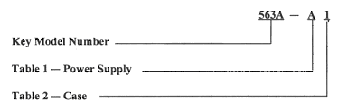

Velocity-Acceleration Vibration Monitor Model 566 – Ordering Information



MODEL


563A

The Model 563A Vibraswitch Monitor is a microprocessor based device programmed to differentiate between valid and invalid vibration alarms. Can be used with one to eight Vibraswitch Malfunction Detectors.

POWER SUPPLY

A

120 VAC

B

240 VAC, 50/60 Hz

C

24 VDC

D

48 VDC

CASE

1

Weather-proof, NEMA 4

2

Explosion-proof, Class I, Division 1, Groups C & D.


3

NEMA 4X, Steel, Painted with Gray Epoxy Enamel

4

NEMA 4X, Stainless Steel Enclosure

ACCESSORIES

190KB083-01

Reset Push-button and Alarm Indicator, 120/240 VAC, explosion-proof

190KB083-02

Four Alarm Indicators, explosion-proof, 120/240 VAC

190KB083-03

Reset Push-button and Alarm Indicator, 48 VDC, explosion-proof

190KB083-04

Four Alarm Indicators, explosion-proof, 48 VDC

190KB083-05

Reset Push-button and Alarm Indicator, 24 VDC, explosion-proof

190KB083-06

Four Alarm Indicators, explosion-proof, 24 VDC





Download the full datasheet

(PDF format)
