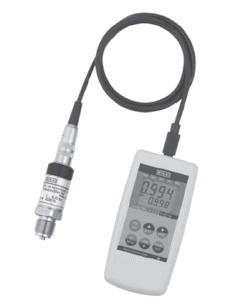

Hand-Held Pressure Indicator CPH 6200 |
|
Pressure Indicator CPH 6200 |
Features
• Digital instrument with external transmitter
• Pressure ranges: from 0 ...
100 mbar up to 0 ... 1,000 bar
• Certified accuracy: 0.2 %
(incl. calibration certificate)
• Data Logger evaluation
software GSoft, Calibration software EasyCal and fully cased service sets
(incl. pumps) available
Functionality
Both gauge and absolute pressure ranges can be measured,
and by using the 2-channel version CPH 6200-S2 with two connected pressure
transmitters it is also possible to measure differential pressure. Via a
menu selection, pressures can be displayed in bar, mbar, PSI, kPa, Mpa or
mmHG. An integrated data logger and various other functions (like MIN,
MAX, HOLD, TARE, Offset--correction, ALARM, POWEROFF, 3 SAMPLE RATES,
SEALEVEL etc.) ensure that the instrument can be used for many different
applications.
Data Sheet (PDF
356 KB) |
 |
|
Basic Kits and Models |
| 7244955 |
Kit 1 Includes: single channel digital instrument, battery, instruction
booklet, carrying case with space for (3) pressure transmitters |
| 7313485 |
Kit 2 Includes:
dual channel digital instrument, battery, instruction booklet,
carrying case with space for (3) pressure transmitters |
| 7253546 |
CPH 6200
single channel version |
| 7253571 |
CPH 6200
dual channel version for differential pressure measurement |
|
Individual Transmitters for CPH 6200 |
|
Model |
Range |
|
Model |
Range |
| 50313011 |
-14.5 to 0 psi |
50313100 |
0 to 200 psi |
| 50313029 |
-14.5 to 15 psi |
50313118 |
0 to 500 psi |
| 50313037 |
-14.5 to 30 psi |
50313126 |
0 to 1000 psi |
| 50313045 |
0 to 1.5 psi |
50313134 |
0 to 1500 psi |
| 50313053 |
0 to 3.5 psi |
50313142 |
0 to 2000 psi |
| 50313061 |
0 to 5.0 psi |
50313151 |
0 to 3000 psi |
| 50313070 |
0 to 15 psi |
50313169 |
0 to 8000 psi |
| 50313088 |
0 to 30 psi |
50313177 |
0 to 14500psi |
| 50313096 |
0 to 100 psi |
|
|
|
|
Options and Accessories for CPH 6200 |
| 2398736 |
NIST
traceable certificate (lists instrument and transmitter as a matched set |
| 9064923 |
G1/2A to 1/2"
NPT Stainless Steel Adapter |
| 9074929 |
G1/2A to 1/4"
NPT Stainless Steel Adapter |
| 9091173 |
Teflon sealing
washer for above adapters |
| 244505 |
Extension Cable
12.4 ft. (3.8 m) for a total length of approx 16.5 ft. (5 m) |
| 2373526 |
GSoft
Logging software - displays recorded data in tables or charts on PC |
| 7662072 |
EasyCal
Light - calibration software |
| 2444505 |
RS232 Interface
Cable |
| 11105186 |
USD Interface
Cable |
|
|
