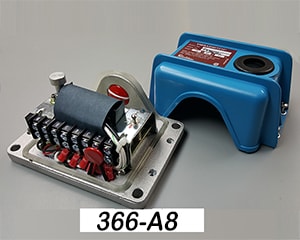

Robertshaw Model 366-A8
- Request for Quote
- Model 366 Specifications
- Model 366 Manual
- Robertshaw Vibration Protection Systems (.pdf 1.5M)
- Internal Design of 366 Vibration Switch
- Electrical Connections for Robertshaw Vibration Switch 366-A
- Electrical Connections for Robertshaw Vibration Switch 366-D
Buy On-line
For larger quantities or end use outside the USA, please request a direct quote at Request for Quote.
The 366-A8 is a mechanical vibration switch designed to safeguard mechanical equipment by triggering contacts if the vibration level reaches a damaging level. It is calibrated on the equipment which eliminates extraneous vibrations.
The 366-A8 does not need power to operate, and the switch contacts can handle:
7 A max. at 460 VAC max. noninductive;
0.5 A max. at 120 VDC;
1.0 A max. at 48VDC;
2.0 A max. at 24 VDC;
5.0 A max. at 12 VDC.
Reseting - The 366-A8 will stay tripped until either manually reset or reset by a "reset coil" powered by 115 VAC.
Enclosure - The 366-A8 has a heavy copper free aluminium base and a general purpose ABS thermoplastic NEMA 4 cover. An expoxy coated base option provides a NEMA 4X rating.
Switch - The 366-A8 has a SPDT (single pole, double throw) switch that provides both normally open and normaly closed terminals.
Effective January 1, 2017, the name of the legal entity, Invensys Systems, Inc., dba Robertshaw Industrial Products, will change to Schneider Electric Systems USA, Inc. This is part of the continued integration of Invensys into Schneider Electric. See Notice
As a authorized representative and distributor for Robertshaw Industrial products we are pleased to be able to offer Robertshaw 366A8 vibration switches from our stock. We have over 25 years of helping customers select and use Robertshaw Vibration Products and can help with any questions that you may have on the 366A8 and other vibration products
Price Matching: We will match or beat any valid price offer. Product
must be new, traceable to Robertshaw factory, with a full 1 year warranty
and in original packaging with operating instructions
